Picture for reference
Application:
The GH150 is designed for hot stamping of all shapes of bottles/containers at high production speeds. It is suitable for glass containers stamping after screen printing with varnish. All servo motor driven and fast speed make the GH150 ideal for off-line or in-line 24/7 production.
General Description:
1．Automatic loading system with bottles standing up on conveyor when loading.
2．Auto pre-registration with servo
3．Fast and smooth servo motor driven transmission system.
4．All servo driven system with linear rails and bolts screw. Parts rotation, parts up/down，foil winding all driven by servo motor.
5．Quick and easy change over from one product to another: 2 jigs only, all other parameters will be set in touch screen.
6．PLC control & touch screen operation system.
7．Automatic unloading with servo driven robot, bottles standing up on conveyor after unloading
8．Safety operation with CE standard
Option:
Camera vision system for cylindrical products (without registration notch) stamping.

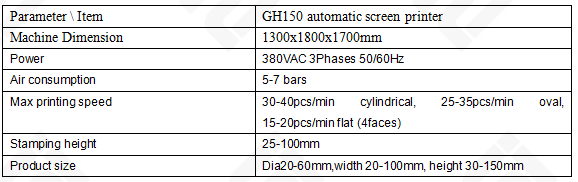

Tech-data:
